10 METER RADIO

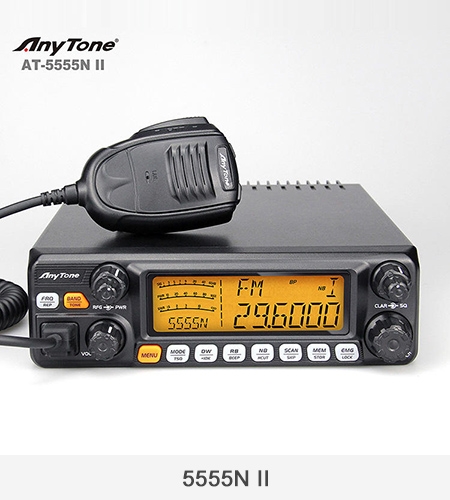

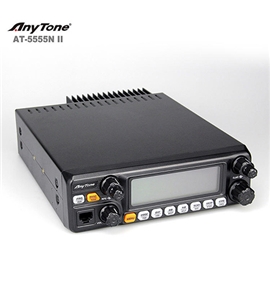

AT-5555N II


Name: 10 METER RADIO

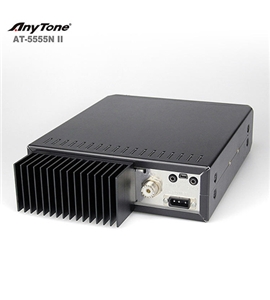

Other side of radio

  • Features
  • Specification

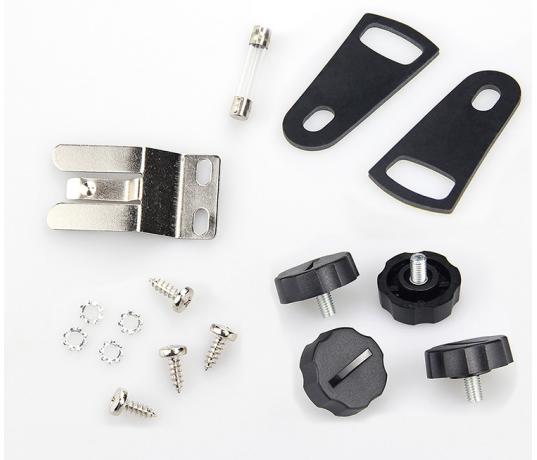

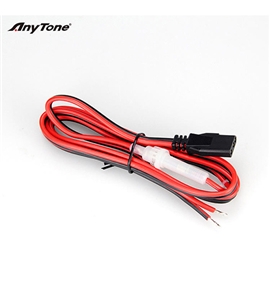

  • Accessories

● Big LCD displays frequency and all kinds of information
● FM、AM、USB、LSB、PA mode
● Frequency Tuning Step 100Hz、1KHz、10KHz、100KHz、1MHz
● ±1.5KHz CLARLFILER Adjustment
● Flexible Menu Function and PC Program Software
● ECHO Function
● SQ, ASQ Function (FM and AM mode only)
● RF GAIN Adjustment
● RF PWR Adjustment
● SCAN Function
● Programmable RB Function
● NB/ANL Function
● DW DUAL-WATCH Function
● Offset Frequency Function
● BEEP Voice Prompt
● +10KHZ Function
● SIG、PWR、SWR Function
● TOT function
● HI-CUT Function
● EMG Channel Function
● SWR Protection
● Power Supply Voltage Protection
● Key-Lock Function
● Six(6) Groups Memory Channel
● Model Name Customized Function (below is new function add which different from AT-5555N)
● CTCSS/DCS Code
● VOX Function
● TX and RX Noise Reduction
● Compatible with electronic and dynamic MIC type
● WX weather channel
● Weather Alert

WX channels
WX-01: 162.400MHz
WX-02: 162.475MHz
WX-03: 162.425MHz
WX-04: 162.450MHz
WX-05: 162.500MHz
WX-06: 162.525MHz
WX-07:

GENERAL
Frequency Range Frequency Range
Frequency Band A/B/C/D/E/F/G/H/I
Frequency Tolerance ±5.0ppm
Channel 40channels(programmable)in each band
Frequency Control Phase-Locked-Loop Synthesizer
Frequency Step 100Hz、1KHz、10KHz、100KHz、1MHz
Frequency Tolerance ±5.00ppm
Input Voltage 13.8V

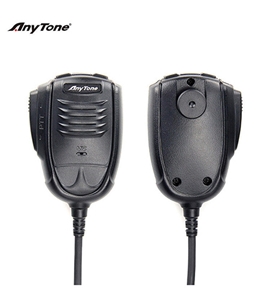

Microphone with push-to-talk /UP/DN and coiled cord

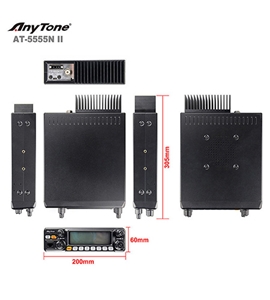

Dimensions 305(L)x200(W)x60(H)
Weight 1.75kgs
Antenna Connector UHF, SO239
Operating Temperature Range -20℃ to +50℃
TRANSMITTER
Power Output AM PEP: 60W / FM: 50W / SSB: 60W(PEP)
Drain 10A(with modulation)
Modulation AM/FM/USB/LSB
Inter-modulation Distortion SSB: 3rd order, more than -25dB; 5th order, more than -35dB
SSB Carrier Suppression 55dB
Unwanted Sideband 50dB
Frequency Response AM/FM: 300 to 3000Hz SSB: 450 to 2500Hz
Output Impedance 50ohms, unbalanced
RECEIVER
Sensitivity SSB: 0.25μV for 10dB(S+N)/N at greater than 1/2-watt of audio output AM:1.0μV for 10dB(S+N)/N at greater than 1/2watt of audio
output FM: 1.0μV for 20 dB (S+N)/N at greater than 1/2 watt of audio output
Adjacent-Channel Selectivity AM/FM: 60dB SSB: 70dB
Image Rejection More than 65dB
IF Frequency AM/FM: 10.695MHz 1st IF, 455KHz 2nd IF SSB: 10.695MHz
RF Gain Control 45dB adjustable for optimum signal reception
Automatic Gain Control(AGC) Less than 10dB change in audio output for inputs from 10 to 100,000 microvolt.
Squelch Adjustable; threshold less than 1.0μV. Automatic Squelch Control(only AM/FM)1.0μV
Audio Output Power 3 watts into 8 ohms
Frequency Response AM/FM: 300 to 3000Hz SSB: 450 to 2500Hz
Built-in Speaker 8 ohms, round
External Speaker(Not Supplied) 8 ohms; disables internal speaker when connected.
